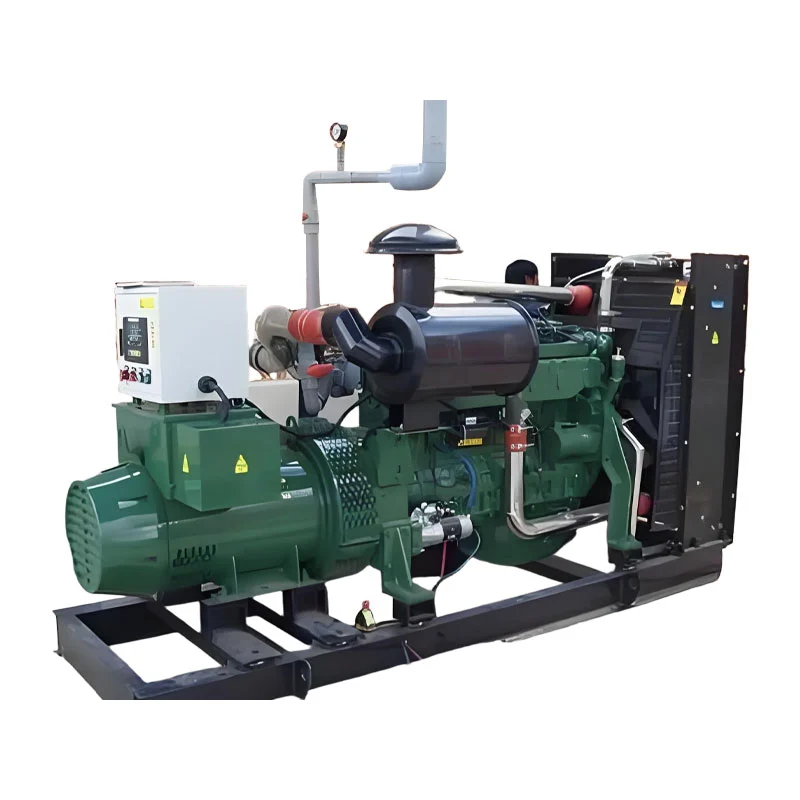

Anti Carbon 600kw Biogas Generator

Kecheng, a China factory, builds the Anti Carbon 600kW Biogas Generator for operators who need to prove their methane destruction – not just claim it. The unit integrates a thermal mass flow meter (accuracy ±1%), a continuous NDIR CH₄ sensor (accuracy ±2%), and a secure data logger with a GPS‑locked clock. Every hour, the system automatically records:

- Biogas volume (m³/h)

- Methane concentration (%)

- Pure CH₄ destroyed (m³/h)

- CO₂ equivalent avoided (t/h) using GWP 28

- Time and date (UTC, non‑adjustable)

Data is saved in a write‑once memory that logs any calibration changes. For maximum transparency, an optional blockchain module writes each hour’s data hash to a public ledger. The engine itself is a robust lean‑burn unit (12.5:1 compression ratio, hardened valves, corrosion‑resistant exhaust) designed for continuous operation on landfill gas, farm biogas, or industrial waste gas. Delivery includes factory calibration, one year of data hosting, and a compliance reporting template.

 What the Generator Measures (Every Hour, Automatically)

No manual logging. No estimation. Every hour is accounted for.

 How Much Methane Is Destroyed – A Real Example

A 600kW generator running 6,000 hours per year on biogas with 50% CH₄:

That is the equivalent of removing over 2,300 passenger cars from the road for one year (using average 4.6 tons CO₂e per car per year). One generator, one year, measurable and verifiable.

 Data Integrity – How You Prove the Reduction

Carbon auditors and regulators require proof that data has not been altered. This Anti Carbon 600kw Biogas Generator provides three independent safeguards:

No special software needed. Auditors can download raw data directly from the PLC via USB.

 Compliance with International Protocols

We provide a compliance checklist with each generator – a document that maps every measured parameter to the corresponding protocol requirement.

 The Technology Behind Accurate Methane Measurement

The measurement system is factory‑calibrated with traceable standards (NIST‑traceable). Re‑calibration is recommended every 2 years – a simple field check using zero gas and span gas (kits available).

 Frequently Asked Questions

Q: Do I need a separate gas analyzer to measure CH₄?

A: No. The Anti Carbon 600kw Biogas Generator includes an integrated NDIR CH₄ sensor. It is installed in the gas train before the engine. Readings are taken continuously.

Q: What happens if the CH₄ sensor fails?

A: The generator continues to run but the data log will show a sensor fault code. The engine’s own lambda control still operates, but methane destruction data will be incomplete until the sensor is replaced. We supply replacement sensors.

Q: Can I use this generator for regulatory reporting (e.g., EPA, EU ETS)?

A: Yes, for methane destruction reporting. The mass flow meter meets EPA’s required accuracy for landfill gas. For EU ETS, the instrument class meets the requirements for measurement‑based emissions reporting. Check with your local authority for specific acceptance.

Q: How do I know the GPS clock is working?

A: The control panel displays GPS sync status. If satellite signal is lost (e.g., indoor installation), the PLC uses its internal battery‑backed clock but marks the data as non‑GPS – auditors may discount that period.

Q: Is blockchain logging mandatory?

A: No. It is an optional feature for projects that require maximum transparency (e.g., voluntary carbon markets with public verification). Standard logging (write‑once memory + GPS timestamp) is sufficient for most compliance programs.

Q: What maintenance does the measurement system need?

A: Annual check of flow meter for debris. CH₄ sensor zero/span check every 2 years (we supply calibration gas kit). No moving parts, no routine replacement except sensor after 5–7 years.

 Environmental Impact – Measurable and Real

Each Anti Carbon 600kW generator, over a 10‑year lifetime operating 6,000 hours per year, destroys approximately 107,520 tons of CO₂ equivalent (10,752 tCO₂e/year × 10 years). That is the same climate benefit as:

- Planting 1.8 million trees (assuming 0.06 tCO₂e per tree per year)

- Avoiding the annual emissions of 23,000 cars

- Closing a 10 MW coal power plant for one month

These numbers are not estimates. They come from the generator’s own verified data logs.

 From Measurement to Reporting: Four Steps

Step 1 – Install and commission. The generator is placed, gas line connected, and our engineer calibrates the measurement instruments to your specific biogas composition. GPS sync is confirmed.

Step 2 – Generator runs and records. Every hour, the system automatically logs biogas flow, CH₄ concentration, runtime, and calculated CO₂ equivalent avoided. Data is saved to the write‑once memory. No operator action required.

Step 3 – Export data. Insert a standard USB drive into the PLC. The system writes a CSV file containing all hourly records since the last export or from a selected date range. The file includes a digital checksum.

Step 4 – Submit or verify. You (or your environmental consultant) use the CSV file to populate reporting templates for CDM, VCS, Gold Standard, or local regulatory bodies. The same file can be shared with auditors for independent verification.

Optional blockchain step – Between Step 2 and Step 3, if enabled, each hour’s data hash is automatically published to a public blockchain ledger, providing external proof of timestamp integrity.

Welcome to buy our Anti Carbon 600kw Biogas Generator. We can offer the best service for you.
