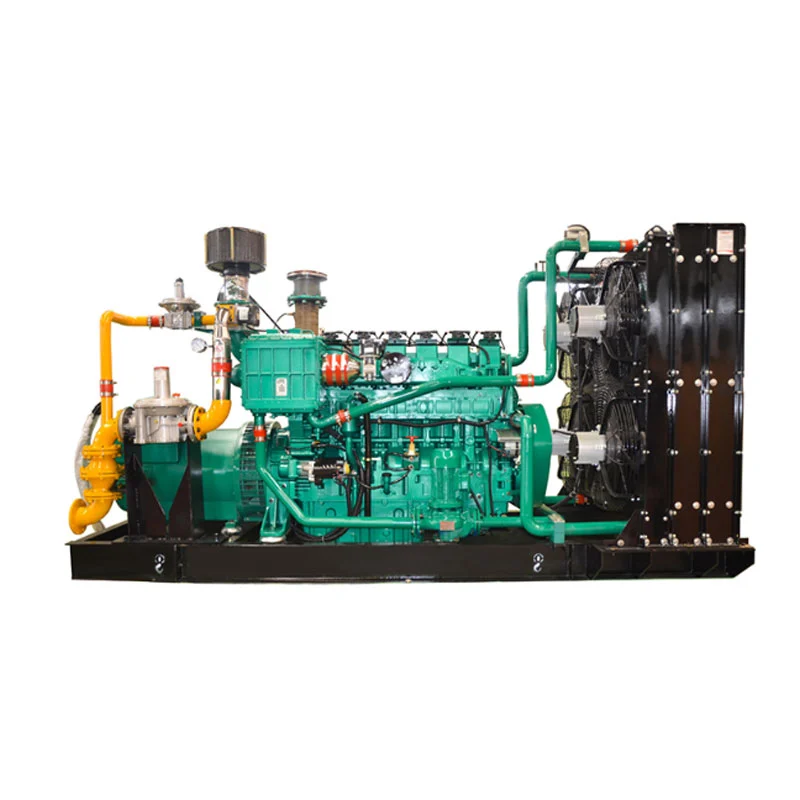

Low NOx Emissions Natural Gas Generator Set

Shandong Kecheng, a professional power equipment manufacturer, focuses on clean energy innovation and launches Low NOx Emissions Natural Gas Generator Set for customers with strict environmental demands to purchase. This unit is upgraded based on the standard Natural Gas Generator Set, using pipeline gas, LNG or CNG as fuel, adopting modular design, and integrating advanced low NOx emission technology. Its core is composed of high-efficiency internal combustion engine, brushless excitation synchronous generator, intelligent PLC control system and matching environmental protection emission system, with compact structure and stable operation. Compared with traditional diesel generator sets and ordinary Natural Gas Generator Set, it has more outstanding environmental performance, lower NOx emissions, which can fully meet the strictest current emission standards, and is an ideal choice for industrial and commercial places with high emission requirements to achieve efficient, clean and compliant power generation.

Product Features

- Ultra-low NOx Emission: Equipped with advanced exhaust gas recirculation (EGR) system and efficient three-way catalytic converter, optimized combustion process, realizing ultra-low NOx emissions, far lower than the standard of ordinary Natural Gas Generator Set.

- Efficient Combustion System: Adopts electronically controlled multi-point injection technology to precisely control the air-fuel ratio (15:1-17:1), matching high compression ratio internal combustion engine (compression ratio 10:1-12:1), reducing fuel waste while ensuring full combustion and reducing pollutant emissions.

- Stable Operation Performance: Carries brushless excitation synchronous generator and electronic speed controller, speed stability accuracy ≤±0.5% (1500r/min), voltage regulation rate ≤±1%, ensuring stable power output and adapting to precision equipment power supply needs.

- Intelligent Control: Equipped with intelligent PLC control system, covering more than 20 monitoring parameters, supporting automatic shutdown alarm and 100 fault records storage, with automatic/manual dual operation mode, which is convenient and labor-saving.

- Strong Fuel Compatibility: Supports natural gas with calorific value of 32-40MJ/m³, and can freely switch between pipeline gas, LNG and CNG without any modification, adapting to different on-site fuel conditions.

- Humanized Protection Design: Double-layer sound insulation cover reduces noise by 20dB, operating noise ≤85dB (1 meter no-load); IP23 grade electrical protection, dust-proof and water-proof, suitable for outdoor installation; complete safety protection measures to ensure safe and reliable operation.

Product Advantages

Low NOx Emissions Natural Gas Generator Set inherits all the advantages of Kecheng's standard Natural Gas Generator Set, and has more prominent environmental protection advantages, forming a comprehensive competitive edge in environmental protection, efficiency, reliability, economy and convenience, specifically as follows:

Technical parameters (100-1000kW models)

Product Application

Low NOx Emissions Natural Gas Generator Set, with its ultra-low emission performance, is widely applicable to various scenarios with strict environmental protection requirements, especially suitable for areas with high emission standards, and can be used as regular or backup power source, specifically including:

- Industrial sector: High-standard chemical plants, food processing plants, electronic manufacturing plants (self-provided power supply/peak shaving power supply), avoiding environmental pollution caused by emissions.

- Business sector: Large shopping malls, high-end hotels, data centers in core urban areas (emergency backup power), meeting the environmental protection requirements of urban central areas.

- Municipal sector: Hospitals, schools, sewage treatment plants, urban greening projects (continuous power supply), ensuring compliance with municipal environmental emission standards.

- Remote areas: Ecological protected areas, scenic spots, rural areas with environmental protection requirements (independent power supply), minimizing the impact on the ecological environment.

- New energy supporting facilities: High-standard distributed energy projects ("electricity + heat" stepwise utilization), matching the low-carbon and environmental protection concept of new energy projects, better than ordinary Natural Gas Generator Set in environmental adaptation.

Our Services as Manufacturer

As a professional manufacturer of power equipment, Shandong Kecheng provides one-stop intimate services for customers purchasing this Natural Gas Generator Set, covering pre-sale, in-sale and after-sale, to fully protect your power needs, with services including:

- Pre-sale service: Professional demand communication, customized power generation solutions for Low NOx Emissions Natural Gas Generator Set according to your usage scenario and emission requirements, and on-site investigation and plan optimization if necessary.

- In-sale service: Efficient order processing, timely production and delivery according to the contract; professional team to carry out on-site installation and debugging, ensuring the stable operation of the unit; on-site training on unit start-up, shutdown, maintenance and troubleshooting.

- After-sale service: Perfect warranty service, free maintenance or replacement for quality problems during the warranty period; 24-hour after-sales response, remote guidance for troubleshooting, and on-site maintenance if necessary; regular follow-up to understand the unit usage; sufficient original spare parts supply to ensure timely maintenance.

Usage Method

1. Pre-Operation Inspection (Mandatory)

2. Start-Up Procedures

1. Mode Selection: Use the control system to choose either "Automatic" mode (triggered by timer or remote control) or "Manual" mode (activate by pressing the start button).

2. Start-Up Monitoring: Let the unit increase its rotational speed to 1500r/min, ensure the oil pressure is ≥0.3MPa, and the water temperature rises to 80℃ (this process usually takes 3 to 5 minutes).

3. Loading Process: Close the output switch → Keep the initial load at ≤50% during the first start-up (run for 30 minutes) → Gradually raise the load to full capacity.

3. Operation Monitoring

- Real-Time Parameter Check: Monitor key parameters continuously, ensuring voltage is within 380V±5%, frequency is 50Hz±0.5Hz, water temperature does not exceed 95℃, and oil pressure is ≥0.2MPa.

- Recording Requirement: Record all operating parameters once every hour. If any abnormality is found, unload the unit immediately and shut it down for inspection.

4. Shutdown Procedures

1. Unloading: Reduce the load to 0 → Disconnect the generator's output switch.

2. Cooling: Let the engine run at idle speed for 3 to 5 minutes (to prevent overheating of the internal combustion engine).

3. Shutdown: Press the "Stop" button → Close the natural gas valve → Cut off the control power supply (disconnect the battery wiring if the unit will be out of service for a long time).

Our Factory Strength

Shandong Kecheng Electric Power Equipment Co., Ltd., located in Weifang, Shandong, the "City of Power" in China, is a private enterprise specializing in R&D, manufacturing and sales of power equipment, with strong factory strength to ensure the quality of Low NOx Emissions Natural Gas Generator Set and Natural Gas Generator Set.

- Qualification Certification: The company has a registered capital of 18 million yuan, with a complete management system, and its products have passed ISO9001-2000 International Quality Management System and ISO14001 Environmental Management System certification, ensuring standardized production.

- R&D and Production Capacity: It has strong scientific research capabilities, complete production and inspection equipment, and an annual production capacity of more than 5,000 units, which can meet the large-scale supply needs.

- Core Component Selection: The core components of the unit (engine, generator, etc.) are selected from well-known domestic and foreign brands such as Volvo, Cummins, Shangchai, Stamford, etc., ensuring the stability and reliability of the product.

- Market Influence: The products are sold in all provinces and municipalities across the country, and have cooperated with well-known enterprises such as China Construction First Group and China Railway Eighth Group, with a good market reputation.

- Exhibition Experience: Participate in the Canton Fair (China Import and Export Fair) and other large-scale exhibitions, showing the strength of products to the world.

FAQ

- Q: What is the difference between Low NOx Emissions Natural Gas Generator Set and ordinary Natural Gas Generator Set?

A: The core difference is the emission performance. The product is equipped with an advanced low NOx emission system, with NOx emissions ≤50 mg/m³, which is 30%-40% lower than ordinary Natural Gas Generator Set, and other performance indicators are basically the same.

- Q: Can the product meet the strictest current emission standards?

A: Yes, its emission index complies with the GB 20891-2014 Class III standard, with NOx emissions ≤50 mg/m³, which can fully meet the strict emission requirements of various high-standard scenarios.

- Q: Is the fuel consumption of the product higher than that of ordinary Natural Gas Generator Set?

A: No, the two have basically the same fuel consumption rate (280-320 g/(kW·h)), because the low NOx emission technology optimizes the combustion process without increasing fuel consumption.

- Q: Can the product switch between different fuels freely?

A: Yes, it supports natural gas with a calorific value of 32-40MJ/m³, and can switch between pipeline gas, LNG and CNG without any modification, which is the same as ordinary Natural Gas Generator Set.

- Q: What is the maintenance cycle of the product?

A: The maintenance cycle is basically the same as that of ordinary Natural Gas Generator Set, including daily, weekly, monthly and regular maintenance. It is only necessary to check the emission system regularly on the basis of routine maintenance.

- Q: Does Shandong Kecheng provide customized services for tbe product?

A: Yes, we can provide customized services according to your power demand (supporting customization above 2000kW) and on-site emission requirements, and customize the most suitable Natural Gas Generator Set solution for you.
