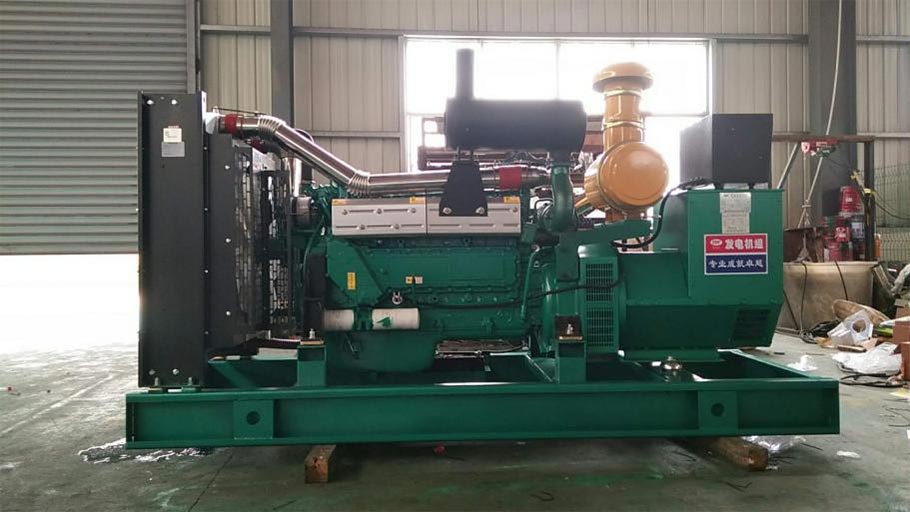

Kilowatt Diesel Generator

This quality kilowatt diesel generators manufactured by Kecheng can provide reliable and economical power supply solutions for small factories, rural areas or outdoor temporary operations. This series of products covers a power range of 10kW to 200kW. The core power adopts small-displacement engines from mature domestic brands such as Yuchai and Weichai, combined with high-efficiency generators. They operate stably and have relatively low maintenance costs. The unit is equipped with a simplified intelligent control system, which supports the installation of automatic transfer switches, rain covers or mobile trailers as needed, flexibly adapting to the requirements of different sites. The product has passed the relevant national standard certifications. The core components come with a two-year or 6,000-hour warranty, balancing reliability and cost performance. Whether used as a temporary power supply for construction, a backup power source for small production equipment, or daily power supply in remote areas, this kilowatt-level generator can provide timely and convenient power support.

Application scenarios (Exclusive adaptation for medium and small power)

1. Small-scale industrial and processing scenarios

• Applicable scenarios: Small machinery factories (lathes, milling machines), food processing plants (packaging machines, mixers), rural workshops (textile, hardware processing)

• Core value: Responding to power outages or unstable voltage in the power grid to ensure uninterrupted small-batch production; A single unit can cover 1 to 2 small production lines, with precise power matching, avoiding the energy waste caused by the "big horse pulling a small cart" of large units.

2. Power supply for rural and remote areas

• Applicable scenarios: Remote rural families/villages (lighting, home appliances), mountainous planting bases (irrigation pumps, greenhouse temperature control), temporary power supply in pastoral areas (domestic electricity, feed processing)

• Core value: Supports independent power supply, solving the electricity problem in areas not covered by the power grid; The 10-50KW models can meet the daily electricity needs of 10 to 20 households, while the 50-100kW models can cover small villages. The fuel consumption is as low as 200g/(kW · h), and the long-term usage cost is controllable.

3. Commercial and civilian emergency scenarios

• Applicable scenarios: Small supermarkets/convenience stores (cold chain refrigeration, cash register systems), community clinics (basic medical equipment), homestays/farmhouses (lighting, air conditioning, water pumps)

• Core value: Startup within ≤15 seconds after power failure, ensuring essential electricity for people's livelihood. The noise of the model with a noise reduction cover is ≤70dB@10 meters, avoiding disturbing the residents. It can be combined with a small ATS to achieve automatic switching between "mains power and unit" without the need for manual supervision.

4. Outdoor temporary operation scenarios

• Applicable scenarios: Small construction sites (vibration rods, temporary lighting), municipal maintenance (road maintenance equipment, drainage pumps), outdoor exhibitions/events (temporary lighting, audio equipment)

• Core value: The 10-50kW models can be optionally equipped with a mobile trailer (weight ≤1500kg, can be towed by a pickup truck), providing flexible relocation. With a protection grade of IP24, it is dust-proof and water-proof, suitable for various outdoor environments. It can operate continuously for 8 to 12 hours with a single refueling.

5. Backup for small and medium-sized data and communication

• Applicable scenarios: Small communication base stations (signal transmission equipment), rural broadband machine rooms (data storage equipment), security monitoring systems (cameras, hard disk recorders)

• Core value: Supports 7× 24-hour standby, operates stably under low load (can still work normally at a load rate of 20%-30%); It can be remotely monitored through a mobile phone APP, reducing the cost of manual inspection of base stations in mountainous areas.

Product advantages (Core Competitiveness of medium and Small Power)

Technical parameters (10-200kW sub-power range)

Technical features (Customized design for medium and small power)

1. Lightweight power matching

• Engine selection: We have carefully chosen small-displacement engines such as Yuchai YC4F (10-30kW), Weichai WP4 (30-100kW), and Cummins QSF (100-200kW). These engines are compact and lightweight. The power density of the 10-50kW models reaches 33kW/㎡, saving 20% of installation space compared to ordinary models of the same power.

• Generator optimization: A small brushless self-excited generator is adopted, which is 15% lighter than the brushed model. The voltage establishment time is ≤0.5 seconds, suitable for the rapid power supply requirements of medium and small loads (such as household appliances and small motors). The voltage fluctuation is ≤±1%, avoiding damage to precision equipment.

2. Portable and protective design

• Mobile structure: Models with a power of 10-50kW can be optionally equipped with a towing trailer (wheelbase 2000-2500mm, suitable for pickup and light truck towing). The trailer is equipped with mechanical support legs (to prevent shaking during operation) and inertial braking (for safety when going downhill), with a maximum traveling speed of ≤60km/h, making outdoor relocation convenient.

• Environmental adaptability: The outer cover of the unit is made of cold-rolled steel plate and treated with plastic spraying (rust prevention grade ≥8), and the electrical system has a protection grade of IP24, which can resist light rain and dust invasion. It can start normally in an environment ranging from -20℃ to 45℃ (an oil preheater is required for temperatures below -20℃, which is optional). It is suitable for various environments in rural areas and outdoors.

3. Simplify intelligent control

• Controller design: Equipped with the simplified KCPLC-03S controller, the interface retains only four core parameters: "voltage, current, water temperature, and oil pressure", and is equipped with a "one-click start/stop" button. There is no complex menu, making it suitable for non-professionals to operate. Supports basic fault alarm (high water temperature, low oil pressure), with sound and light prompts when an alarm occurs, and automatically shuts down for protection at the same time.

• Remote monitoring (optional) : Models with a capacity of 100-200kW can be equipped with a 4G module. Users can check the operating status and receive fault alerts through the "Kecheng Electric Power" wechat mini-program (no need to download an APP), which is suitable for the unmanned operation requirements of small base stations and remote sites.

4. Optimized for low consumption and durability

• Fuel system: Two-stage fuel filtration (coarse filtration + fine filtration) is adopted, with a filtration accuracy of 20μm, suitable for domestic diesel of different qualities. The fuel injection system has been optimized (with an injection pressure of 1200-1600bar), ensuring more complete combustion. The fuel consumption under partial load (30%-50%) is 5% lower than that of ordinary models.

• Lubrication system: 15W-40 general-purpose engine oil (easily available locally) is used. The oil capacity is 10%-15% less than that of models with the same power, and the oil change cost is low. Equipped with an oil level observation window (no need to pull out the oil dipstick), daily inspections are more convenient.

5. Simplified security protection

• Core protection functions: It features four basic protections: overload (shutdown at 120% of the rated current), short circuit, high water temperature (shutdown at ≥98℃), and low oil pressure (shutdown at ≤0.2MPa), meeting the safety requirements of small and medium-sized scenarios. The structure is simplified without reducing core safety.

• Explosion-proof and fire protection: The fuel tank adopts a leak-proof design (capacity ≤100L, meeting the daily fuel demand of medium and small power), and the electrical terminal blocks are insulated to prevent short-circuit sparks. The installation area only needs to be equipped with one 4kg dry powder fire extinguisher, reducing the cost of fire protection configuration.

Usage Method (Easy operation for medium and small power)

1.Pre-startup check (5-minute quick check)

2.Startup operation (Two modes)

(1) Manual start (commonly used, suitable for temporary power supply)

1. Open the fuel valve (located at the bottom of the fuel tank, clockwise), and switch the controller's "Start mode" to "manual".

2. Press the "Preheat" button (in winter or low-temperature environments, preheat for 30 seconds. The process is completed when the button light goes out).

3. Press the "Start" button. After the unit starts (hear the engine running sound and the speed rises to 1500r/min), observe the controller display: voltage 380V±5%, oil pressure ≥0.3MPa. After stabilizing for 3 minutes, close the output switch (air switch) and gradually load (the first load should not exceed 50%).

(2) Automatic start-up (equipped with ATS, suitable for emergency backup)

1. Set the ATS switch to the "Auto" position and switch the controller's "Start Mode" to "Auto".

When the mains power is interrupted, the ATS automatically triggers the unit to start, and the entire process of preheating, starting and loading is completed automatically (without manual intervention).

After the mains power is restored, the ATS automatically disconnects the load of the unit and switches back to the mains power. The unit will run no-load for 3 minutes and then automatically shut down.

3. Operation Monitoring (Daily Simple Monitoring)

• Real-time viewing: Check the controller display every 2 hours to ensure that the voltage (380V±5%), frequency (50Hz±0.5Hz), water temperature (≤95℃), and oil pressure (≥0.2MPa) are normal, and no fault lights are on.
• Abnormal handling: If "high water temperature" (check the coolant after shutdown), "low oil pressure" (check the oil level), or "overload" (reduce the load) occurs, stop the machine to eliminate the fault before restarting. It is strictly prohibited to operate with faults.

4. Shutdown operation (completed in 3 steps)

1. Unloading: First, turn off all electrical equipment, and then disconnect the output switch (air switch) of the unit.
2. Cooling: Keep the unit running unloaded for 3 to 5 minutes (to cool down the engine and prevent high-temperature shutdown from damaging components);
3. Shutdown: Press the "Stop" button on the controller. After the unit stops, close the fuel valve (for long-term shutdown) and disconnect the power supply of the controller (unplug the power plug).

Safety and Protection (Adaptation Specifications for Small and Medium-sized Scenarios)

1. Installation safety (Simplified requirements)

• Site selection: Install on a well-ventilated, flat ground far from open flames (at least 5 meters away) (no special cement foundation is required; wooden boards or rubber pads can be used). For outdoor installation, a simple rain shelter should be built (to prevent rainwater from directly hitting the unit), and for indoor installation, Windows should be opened for ventilation (2 to 3 times per hour).

• Electrical safety: Grounding of the unit (connected to the grounding electrode with a copper core wire of ≥2.5mm², with a grounding electrode depth of ≥1.5 meters); The output line should use copper cables of ≥10mm² (10-50kW) to avoid overload heating. When connected to the municipal power grid, a small grid connection protection device (customized by Kecheng) must be installed. Direct grid connection is strictly prohibited.

• Fire protection: One 4kg ABC dry powder fire extinguisher should be provided in the installation area (no more than 3 meters away from the unit). Flammable and explosive items (such as gasoline and diesel drums) are prohibited from being stored. A "No Smoking" sign should be posted.

2. Safe operation (Beginner-friendly)

• Personnel Requirements: Operators are required to read the "Operation Manual", understand the basic steps of "start/stop", no professional certificate is needed, but children and people who have drunk alcohol are prohibited from operating.

• Operating Precautions: Do not touch the exhaust pipe during operation (high temperature ≥300℃, prone to burns), and do not open the fuel tank cap (to avoid fuel evaporation and sparks). When adding fuel, the machine must be shut down. Wait until the unit cools down to room temperature (about 30 minutes) before proceeding.

• Personal protection: Wear work clothes and anti-slip shoes when operating. Wear gloves when cleaning the unit (to avoid scratches on the sharp edges of the machine body). Wear goggles when refueling (to prevent fuel from splashing into the eyes).

3. Maintain security (Simple and easy to implement)

• Power and fuel cut-off: Before maintenance, disconnect the power supply of the controller, close the fuel valve, and unplug the battery wiring (to avoid false start-up).

• Simple maintenance: When replacing the filters (oil filter, fuel filter), remove them slowly with a wrench (to avoid oil splashing). Seal the old filters (do not discard them at will). Use a dry cloth or brush to clean the dust on the machine body (do not rinse with water).

• Professional maintenance: For complex faults such as abnormal engine noise and inability to start, please contact Kecheng after-sales service (400-xxx.xxxx). Do not disassemble the engine by yourself (to avoid damaging components).

4. Emergency Response (Dealing with Sudden Situations)

• Unable to start: Check the battery voltage (charge if insufficient), fuel level (add to sufficient fuel level), and spark plugs (for 12V models, they can be removed to clean carbon deposits). If it still cannot start, contact after-sales service.

• Fuel leakage: Immediately stop the machine, close the fuel valve, wipe the leaked fuel with a dry cloth, check the pipeline interface (retighten), and only restart after confirming there is no leakage.

• Minor fires: Immediately stop the machine and cut off the fuel supply. Use a dry powder fire extinguisher to spray at the base of the flames. If the fire cannot be controlled, call 119 and evacuate to a safe area.

Maintenance and Servicing Periodic Table (listed separately for Easy reference)
