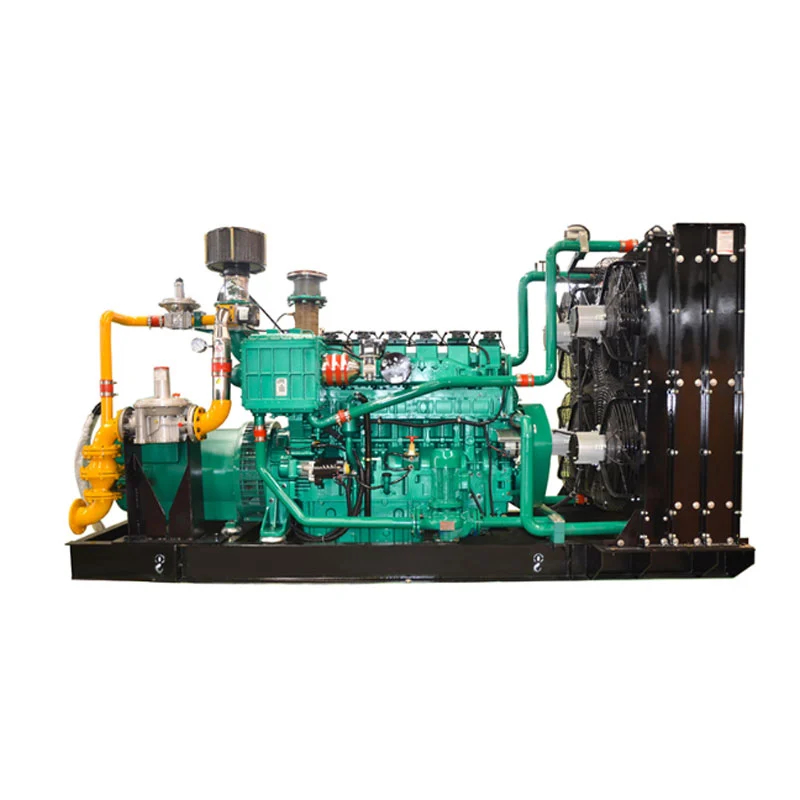

Anti-Rust Noise Reduction LNG Generator Set

Kecheng Anti-Rust Noise Reduction LNG Generator Set is manufactured by Shandong Kecheng Electric Power Equipment Co., Ltd., a professional Supplier of natural gas and LNG power generation equipment in China. The unit combines anti-corrosion structure design, low-noise technology, and intelligent control to support industrial, commercial, municipal, and distributed energy applications requiring long-term operational stability.

Structural Design for Corrosion Resistance and Low Noise

Anti-Rust Enclosure Construction

• Outer enclosure uses cold-rolled steel plate with anti-rust coating treatment.
• Surface treatment adopts electrostatic spraying and high-temperature baking paint process to improve corrosion resistance.
• Suitable for coastal regions, humid environments, construction sites, and outdoor installation scenarios.
• IP23 protection grade helps reduce dust and water intrusion during operation.

Noise Reduction Configuration

• Double-layer soundproof enclosure structure.
• Internal sound-absorbing cotton reduces operational noise by approximately 20dB.
• No-load operating noise is ≤85dB at 1 meter.
• Airflow channel design balances ventilation efficiency and acoustic insulation.

Generator System Configuration

Core Components

The Anti-Rust Noise Reduction LNG Generator Set consists of:

• High-efficiency natural gas internal combustion engine
• Brushless excitation synchronous generator
• Intelligent PLC control system
• Cooling and intake systems
• Soundproof and anti-rust enclosure structure

Fuel Compatibility

The unit supports multiple gas sources without structural modification:

• LNG
• CNG
• Pipeline natural gas

Applicable fuel calorific value range: 32–40MJ/m³

Technical Parameters

Combustion and Control Technologies

High-Efficiency Combustion System

• Electronically controlled multi-point injection technology.
• Air-fuel ratio controlled between 15:1 and 17:1.
• Engine compression ratio ranges from 10:1 to 12:1.
• Helps reduce heat loss and improve fuel utilization efficiency.

Stable Electrical Output

• Electronic governor recovers within 1 second during sudden load changes from 10% to 100%.
• Brushless excitation structure reduces maintenance requirements.
• Supports stable power supply for industrial equipment and precision electrical loads.

Intelligent Monitoring Functions

The PLC control system supports monitoring of more than 20 parameters, including:

• Voltage
• Frequency
• Rotational speed
• Water temperature
• Oil pressure

Additional functions include:

• Automatic shutdown alarm
• Historical fault storage (100 records)
• Automatic/manual operation modes
• Timed startup support
• Remote monitoring compatibility

Operating Cost and Emission Performance

Lower Operating Cost

Compared with conventional diesel generator sets, the Anti-Rust Noise Reduction LNG Generator Set provides:

• 30%–50% lower operating cost
• 20%–30% lower maintenance cost

Emission Characteristics

Compared with diesel generator sets:

• NOx emissions reduced by 80%–90%
• CO₂ emissions reduced by approximately 20%

Reliability Indicators

• Mean Time Between Failures: 8000–12000 hours
• Lower vibration and reduced internal wear contribute to extended service life.

Application Industries and Installation Environments

Industrial Applications

• Manufacturing plants
• Chemical facilities
• Mining projects
• Industrial parks

Commercial Applications

• Hotels
• Shopping malls
• Data centers
• Office buildings

Municipal and Infrastructure Projects

• Hospitals
• Sewage treatment plants
• Railway and highway construction
• Fire safety backup systems

Remote and Distributed Energy Projects

• Rural independent power supply
• Oil and gas field support
• Distributed energy systems with electricity and heat utilization

Operation and Maintenance Requirements

Pre-Startup Inspection

Operators should check:

• Fuel pressure: 0.1–0.3MPa
• Lubricating oil level
• Coolant level
• Battery voltage
• Pipeline leakage condition

Standard Startup Procedure

• Select automatic or manual mode.
• Confirm rotational speed reaches 1500r/min.
• Verify oil pressure ≥0.3MPa.
• Run under ≤50% load for the first 30 minutes after startup.

Maintenance Schedule

Manufacturing and Service Support

Manufacturing Capability

Shandong Kecheng Electric Power Equipment Co., Ltd. operates a complete production and inspection system with annual production capacity exceeding 5,000 units. The company manufactures diesel generators, natural gas generators, gas generators, and biogas generators across multiple power ranges.

Quality Certifications

• ISO9001-2000 International Quality Management System
• ISO14001 Environmental Management System

Service Process

Kecheng provides:

• Pre-sale demand analysis and model selection
• On-site technical evaluation when required
• Installation and commissioning support
• Operator training
• 24-hour after-sales response
• Spare parts supply and technical follow-up

Long-Term Power Supply Solution

The LNG Generator Set is designed for users requiring stable power generation in corrosive, humid, or noise-sensitive environments. With anti-rust coating treatment, intelligent control functions, flexible gas fuel compatibility, and lower operating costs compared with diesel units, the system is suitable for continuous and standby power applications across industrial, commercial, and municipal sectors.

Kecheng continues to supply Anti-Rust Noise Reduction LNG Generator Set solutions for infrastructure projects, industrial enterprises, and distributed energy applications requiring reliable low-emission power generation equipment.
