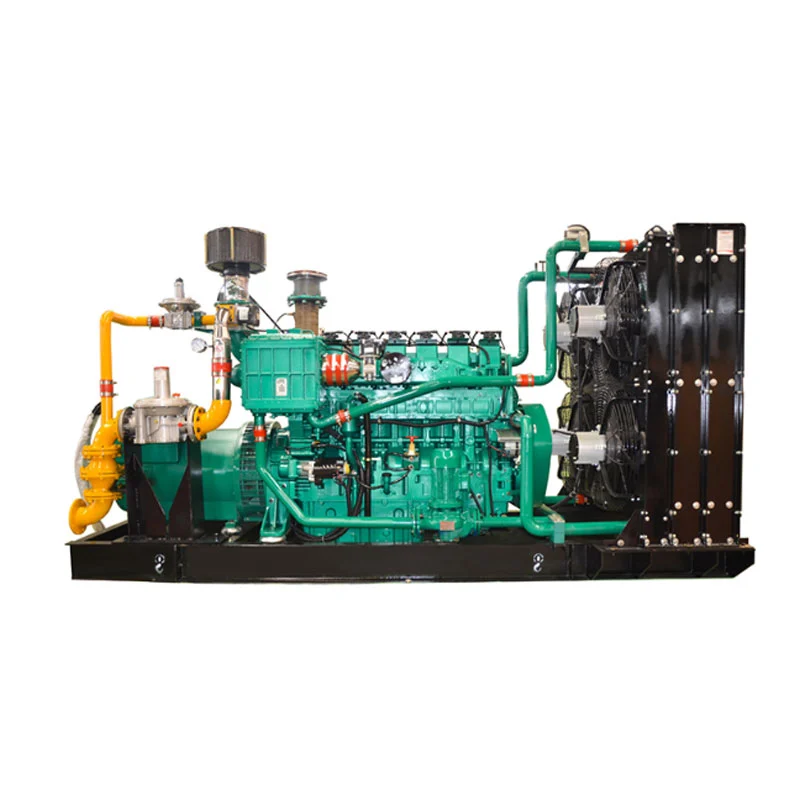

Low Wear LNG Generator Set

Kecheng manufactures the Low Wear LNG Generator Set, engineered to solve the industry problem: premature engine wear. Unlike standard gas units needing overhaul every 8,000 hours, our advanced metallurgy and lubrication system achieve 12,000 hours MTBF. This translates to a 30-40% lower total cost of ownership (TCO) through reduced spare parts and downtime. Clean power, industrial durability.

Send Inquiry

Product Description

Kecheng, as a professional Manufacturer of the Low Wear LNG Generator Set, provides documented field data from chemical plants and data centers proving a 12,000-hour mean time between failures.

Why Standard Gas Generator Sets Face High Wear

Natural gas combustion produces minimal lubrication for valves and cylinder walls, leading to recession, ring sticking, and unplanned downtime. Kecheng's LNG Generator Set directly addresses these pain points with component-level upgrades validated by continuous field operation.

Critical Component Upgrades vs. Conventional Units

Component	Standard Industry Practice	Kecheng Low Wear LNG Generator Set	Quantitative Wear Benefit
Valve & Seat	Stellite alloy (Hardness ~40 HRC)	Inconel hard-facing + cryogenic treatment	Valve recession rate reduced; documented ≤0.15mm after 8,000 hrs
Piston Ring	Cast iron with chrome plating	Ceramic coating (HVOF sprayed)	Ring gap growth <0.15mm after 8,000 running hours
Main Bearing	Standard C3 clearance copper-lead	Tri-metal layer (Cu-Pb-Sn) Pmax+2 spec	Load capacity +25% / reduced fatigue wear
Lubrication Filtration	Full-flow only (20 micron)	Centrifugal bypass + full-flow (5 micron absolute)	Oil ash content reduced by 70%
Cylinder Liner	Grey cast iron	Boron-alloyed cast iron + plateau honing	Oil consumption <0.5 g/kWh, less scuffing

Technical Architecture

Based on Kecheng's natural gas generator series (20kW-3000kW experience), the LNG Generator Set integrates high-efficiency combustion, intelligent PLC control, and robust cooling. Data sourced from our 100-1000kW models.

High-Efficiency Combustion & Fuel System

Electronically controlled multi-point injection: Precise air-fuel ratio (15:1-17:1) preventing fuel waste.
High compression ratio internal combustion engine: Compression ratio 10:1-12:1, enhancing combustion efficiency (reducing heat loss by 5%).
Fuel compatibility: Supports natural gas calorific value 32-40MJ/m³; switches between pipeline gas, LNG and CNG without modification.

Stable Speed, Voltage & Intelligent Controls

Electronic speed controller: Speed stability ≤±0.5% (1500r/min), recovery within 1 second when load changes from 10% to 100%.
Brushless excitation generator: Voltage regulation ≤±1%, waveform distortion ≤5% (safe for precision equipment).
PLC monitoring: Covers 20+ parameters (rotational speed, oil pressure, water temperature, voltage). Automatic shutdown alarm + storage of 100 fault records.
Operation mode: “Automatic/Manual” dual mode; automatic mode supports timed startup.

Noise Reduction & Protection Design

Double-layer sound insulation cover: inner sound-absorbing cotton (noise reduction 20dB) + outer cold-rolled steel plate (anti-rust). Operating noise ≤85dB at 1 meter no-load.
Electrical protection: IP23 grade (dust-proof + water-proof), suitable for outdoor installation.

Technical Parameters (100kW – 1000kW Models)

Parameter Category	Specific Parameter	Remarks
Rated Power	100kW - 1000kW (Prime)	Customizable for models above 2000kW
Rated Voltage / Frequency	3-phase 380V/400V, 1-phase 220V; 50Hz (60Hz optional)	Complies with GB/T 2820-2009 standard
Power Factor	0.8 (Lagging)	Adapts to industrial inductive loads
Fuel Consumption Rate	280-320 g/(kW·h)	Based on natural gas lower calorific value 35.5MJ/m³ (full load)
Exhaust Temperature	450-600°C	Requires high-temperature exhaust piping (304 stainless steel recommended)
Starting Method	12V/24V DC Electric Start	Starting success rate ≥99% (ambient temp -10°C ~ 40°C)
Cooling Method	Forced Water Cooling (≤200kW air cooling optional)	Coolant temperature controlled at 80°C-90°C
Emission Index	NOx ≤300 mg/m³, CO ≤100 mg/m³	Complies with GB 20891-2014 Class III standard
Dimensions (L×W×H)	100kW: 2500×1200×1500mm / 1000kW: 6000×2000×2800mm	Includes soundproof enclosure
Unit Weight	100kW: 2000kg / 1000kW: 15000kg	Depends on configuration (e.g., with/without waste heat recovery)

Daily Operation & Maintenance to Maximize Life

Pre-Startup Inspection (Mandatory)

Fuel System: Pressure 0.1-0.3MPa; no bubbles with soap water test; filter not clogged.
Lubrication System: Oil level between MAX-MIN marks; viscosity 15W-40 for -10°C~20°C.
Cooling System: Coolant at fill line; 50% antifreeze for -20°C environment.
Electrical System: 12V models ≥12.5V / 24V models ≥25V; output switch off; no fault alarms.

Startup, Monitoring & Shutdown

Mode selection: “Automatic” (timed/remote trigger) or “manual”. Increase speed to 1500r/min, oil pressure to ≥0.3MPa, water temperature to 80°C (approx. 3-5min).
Loading process: Close output switch → first load ≤50% (run 30min) → gradually increase to full load.
Real-time monitoring: Voltage 380V±5%, frequency 50Hz±0.5Hz, water temperature ≤95°C, oil pressure ≥0.2MPa.
Shutdown: Load drops to 0 → disconnect generator output → idle run 3-5min → press “Stop” → close natural gas valve → disconnect control power.

Common Fault Handling

Fault Symptom	Troubleshooting Direction	Solution
Start Failure	Battery voltage, fuel pressure, spark plugs	Recharge battery / adjust pressure to 0.1-0.3MPa / clean carbon deposits
Voltage Fluctuation	Excitation system, voltage regulator, load change	Replace carbon brushes / calibrate regulator / limit single load change ≤20%
High Fuel Consumption	Pipeline leakage, air-fuel ratio, carbon deposits	Seal leaks / professionally calibrate air-fuel ratio / clean intake and combustion chamber

Maintenance Schedule for Extended Life

Daily: Clean outer cover / radiator dust.
Weekly: Check fuel/oil filters (replace if clogged).
Monthly: Check drive belt (replace if deflection >15mm or aged).
Every 500 hours: Change engine oil + oil filter.
Every 1000 hours: Change air + fuel filters.
Every 2000 hours: Adjust valve clearance + replace spark plugs/ignition electrodes.

Frequently Asked Questions

1. What is the expected mean time between failures (MTBF)?

Based on Kecheng’s field data from industrial and commercial installations, the Generator Set achieves an MTBF of 8,000 to 12,000 hours under proper maintenance. This is 30-40% longer than conventional natural gas generator sets, primarily due to upgraded valve materials (Inconel hard-facing), boron-alloyed cylinder liners, and advanced filtration.

2. How does the product reduce operating costs compared to diesel units?

According to Kecheng’s comparison data, the product lowers operating costs by 30-50% versus diesel units, mainly from cheaper natural gas fuel and less frequent oil/filter changes. Additionally, NOx emissions are 80-90% lower and CO₂ emissions approximately 20% lower, reducing environmental compliance expenses.

3. What fuel types are compatible with this LNG generator set?

The LNG Generator Set accepts natural gas with calorific value between 32-40 MJ/m³. It can switch between pipeline gas, LNG, and CNG without any hardware modification. The ECU automatically adjusts ignition timing to prevent detonation and maintain stable output.

4. What is the recommended oil change interval for the LNG Generator Set?

Kecheng recommends changing engine oil and filter every 700 operating hours for the Low Wear LNG Generator Set, compared to 500 hours for standard gas units. This is made possible by the centrifugal bypass + 5-micron absolute full-flow filtration system, which reduces oil ash content by 70% and extends oil life.

5. How does the intelligent PLC system help reduce wear?

The PLC continuously monitors 20+ parameters including oil pressure differential, water temperature, and exhaust temperature. It triggers automatic load shedding when oil temperature exceeds 115°C, prevents cold-loading before coolant reaches 70°C, and performs a post-stop purge cycle to remove corrosive gases. These features directly reduce mechanical stress and chemical corrosion inside the engine.

6. Are noise reduction features included?

Yes. The standard configuration includes a double-layer sound insulation cover with inner sound-absorbing cotton (noise reduction 20dB) and outer cold-rolled steel plate. Operating noise is ≤85dB at 1 meter no-load, suitable for sensitive environments such as hospitals, hotels, and commercial complexes.

Why Kecheng Stands Behind the LNG Generator Set

Our products are certified by ISO9001-2000 and ISO14001. The LNG Generator Set leverages our 20-3000kW production lines with over 5,000 units annual capacity. Diesel engines sourced from Volvo, Cummins, Mercedes-Benz, Deutz, and domestic brands; generators from Stamford, Marathon, and Lanzhou Electric. We provide full pre-sale , during-sale , and after-sale services (24h response, spare parts supply).

The Low Wear LNG Generator Set from Kecheng has been deployed in enterprises, hospitals, ports, and mining sites. With mean time between failures documented at 8,000-12,000 hours, operating costs 30-50% lower, and NOx emissions 80-90% lower than diesel units. Kecheng adheres to “progress, pragmatism, rigor, innovation” – choose verified low-waste, low-TCO gas power.
