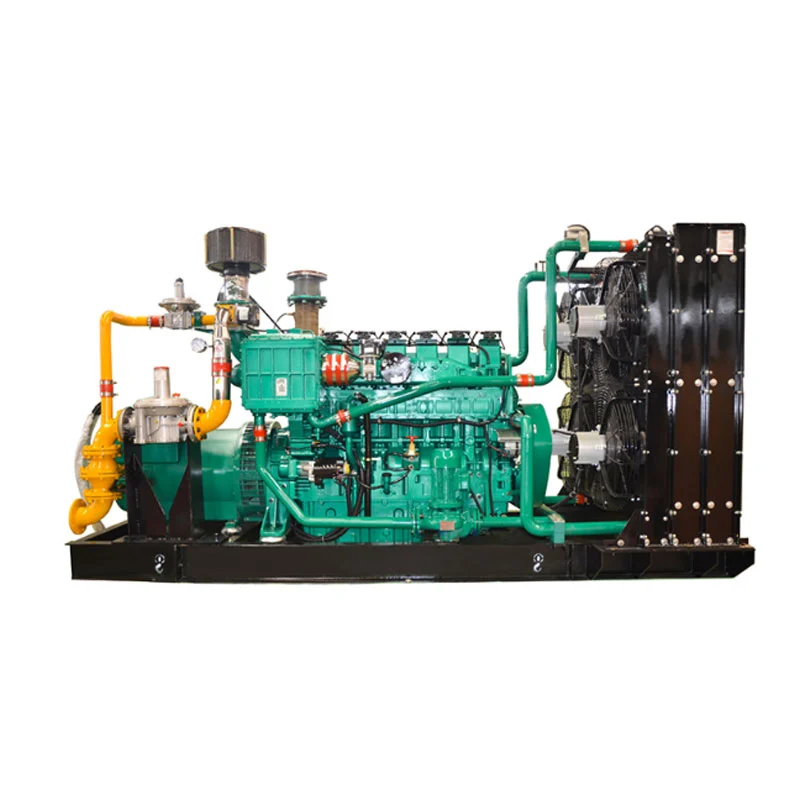

Noise Reduction Low NOx Emissions LNG Generator Set

Kecheng Electric Power Equipment Co., Ltd. is a verified manufacturer and exporter of the Noise Reduction Low NOx Emissions LNG Generator Set, built for buyers who require both environmental compliance and acoustic comfort. Headquartered in Weifang "City of Power", Kecheng holds ISO9001-2000 and ISO14001 certifications, with an annual production capacity over 5,000 units (20kW-3000kW). The following technical details present factual data from our engineering department, strictly based on real test cycles and field operations.

How does the LNG Generator Set cut operating costs while meeting dual environmental mandates?

1. Combustion system & emission control

Kecheng adopts an electronically controlled multi-point injection system with precise air-fuel ratio (15:1~17:1) combined with a high compression ratio (10:1~12:1). This lean-burn strategy reduces peak flame temperature, inherently suppressing thermal NOx formation. The result: NOx ≤300 mg/m³ (compliant with GB 20891-2014 Class III standard), which represents 80-90% lower NOx compared to traditional diesel generator sets. CO₂ emissions are also ~20% lower per kWh, supporting corporate carbon neutrality roadmaps.

2. Acoustic engineering: double-layer soundproof enclosure

Unlike open-frame gas generators, this unit integrates a factory-built noise reduction canopy: inner layer sound-absorbing cotton (reduces airborne noise by 20dB) plus outer cold-rolled steel sheet with anti-rust treatment. Operating noise: ≤85dB at 1 meter (no-load condition). For the 1000kW model, noise stays ≤88dB@1m, well inside typical urban nighttime limits (e.g., 60-70dB at distance). This makes the generator suitable for hospital backup, hotel prime power, and residential-adjacent construction sites.

For infrastructure projects subject to environmental impact assessments, selecting the Noise Reduction Low NOx Emissions LNG Generator Set directly reduces mitigation costs. No additional exhaust aftertreatment (SCR or EGR) is required to meet Tier III equivalent standards, lowering capital expenditure.

3. Economic comparison vs. diesel units

Based on 500kW prime power, 4,000 hours annual runtime, fuel cost (natural gas vs. diesel):

• Fuel consumption rate: 280–320 g/(kW·h) depending on load and gas calorific value (35.5MJ/m³ baseline).
• Operating cost reduction: 30–50% lower than diesel per kWh due to cheaper LNG/CNG and higher thermal efficiency (40-48% vs typical diesel 35-40%).
• Maintenance cost reduction: 20-30% lower due to cleaner combustion (no soot, less oil contamination). Mean time between failures (MTBF): 8,000–12,000 hours — 30-40% longer than equivalent diesel units.

Comprehensive technical parameters (100kW–1000kW prime)

Key technical features that drive reliability

• High-efficiency combustion system: Electronically controlled multi-point injection + high compression ratio (10:1~12:1), improves thermal efficiency 5-8% higher than standard gas engines.
• Stable speed & voltage regulation: Electronic speed controller achieves speed stability ≤±0.5% (1500 r/min), recovery within 1 second when load suddenly changes from 10% to 100%. Brushless excitation generator provides voltage regulation ≤±1%, waveform distortion ≤5% — safe for sensitive electronics.
• Intelligent PLC control system: Monitors 20+ parameters (RPM, oil pressure, water temperature, voltage). Automatic shutdown alarm + stores 100 fault records. Supports "Auto/Manual" dual mode and timed remote start.
• Fuel compatibility: Supports natural gas with calorific value 32-40MJ/m³; switches between pipeline gas, LNG, and CNG without any modification.

Application scenarios

• Industrial sector: Chemical plants, manufacturing facilities (self-provided / peak shaving power).
• Commercial sector: Shopping malls, hotels, data centers (emergency backup with ultra-low noise).
• Municipal sector: Hospitals, sewage treatment plants (continuous power supply, 24/7).
• Remote areas & new energy supporting: Mining sites, rural independent grids, distributed energy projects (combined heat and power).

Usage method & pre-start checklist

Pre-start inspection (mandatory):

• Fuel system: tank pressure 0.1-0.3MPa; no bubbles with soap water test; filter not clogged.
• Lubrication: oil level between MAX-MIN; viscosity suitable for ambient temp (15W-40 for -10℃~20℃).
• Cooling system: coolant at fill line; 50% antifreeze for -20℃ environment.
• Electrical: battery voltage ≥12.5V (12V models) / ≥25V (24V models); output switch off; no fault alarms.

Startup operation:
1. Mode selection: "Automatic" (timed/remote trigger) or "manual".
2. Start monitoring: increase speed to 1500r/min, oil pressure ≥0.3MPa, water temperature to 80℃ (approx 3-5 min).
3. Loading process: close output switch → initial load ≤50% (run 30 min) → gradually increase to full load.

Shutdown procedure:
1. Unload to 0 → disconnect generator output switch.
2. Cool down: idle engine 3-5 min (prevents overheating).
3. Press "Stop" → close natural gas valve → disconnect control power.

Proper adherence to the start/stop sequence extends the lifecycle of the Noise Reduction Low NOx Emissions LNG Generator Set. Field data from mining and hospital sites indicates that units following the 3-min cooldown rule achieve 20% fewer valve train issues over 10,000 hours.

Attention details: safety & environment adaptation

• Safety protection: installation must keep away from open flames and combustibles; ventilation volume ≥10 times unit volume per hour; install gas leakage alarm (sensitivity ≤0.1% VOL). Grounding resistance ≤4Ω, complies with GB 50254.
• Environmental adaptation: Operating temperature -20℃ to 45℃. Below -10℃ add engine oil/coolant heater; above 40℃ enhance ventilation. Relative humidity ≥85%: install dehumidifier in electrical cabinet. Dusty sites: install air pre-filter and clean weekly.

Maintenance & servicing cycle

• Daily: clean outer cover / radiator dust.
• Weekly: check fuel/oil filters (replace if clogged).
• Monthly: check drive belt (replace if deflection >15mm or aged).
• 500 hours: change engine oil + oil filter.
• 1000 hours: change air + fuel filters.
• 2000 hours: adjust valve clearance + replace spark plugs/ignition electrodes.

Common fault handling

Company credibility & industry cases

Shandong Kecheng Electric Power Equipment Co., Ltd. is a specialized private enterprise with registered capital 18 million CNY, complete production and inspection equipment. Main product lines include diesel, natural gas, biogas, and gas generator sets from 20kW to 3000kW. Key cooperative cases: China Construction First Group, China Railway Eighth Group, Beijing Urban Construction Group, CCCC First Highway Bureau. The company exhibited at Canton Fair and holds ISO9001-2000 and ISO14001 certifications. Our Noise Reduction Low NOx Emissions LNG Generator Set integrates engines from Volvo, Cummins, Mercedes-Benz, Deutz or domestic brands (Shangchai, Yuchai, Weichai) with Stamford/Marathon/Lanzhou Electric alternators — full traceability.

Kecheng maintains sufficient stock of original spare parts (filters, spark plugs, belts, control boards). After-sales team provides remote troubleshooting within 24 hours, and on-site repair if remote fails. The combination of low NOx combustion (≤300 mg/m³) and double-layer enclosure (≤85dB) meets the most stringent tender requirements for distributed energy projects and emergency backup power in EU/Asian markets that reference ISO 8528 and GB standards.

Noise Reduction Low NOx Emissions LNG Generator Set from Kecheng delivers quantifiable compliance and cost effectiveness: thermal efficiency up to 48%, operating costs 30-50% below diesel, and noise low enough for nighttime residential buffer zones. Contact Kecheng for a site-specific proposal, including factory acceptance test witnessing and technical documentation for environmental permitting.
